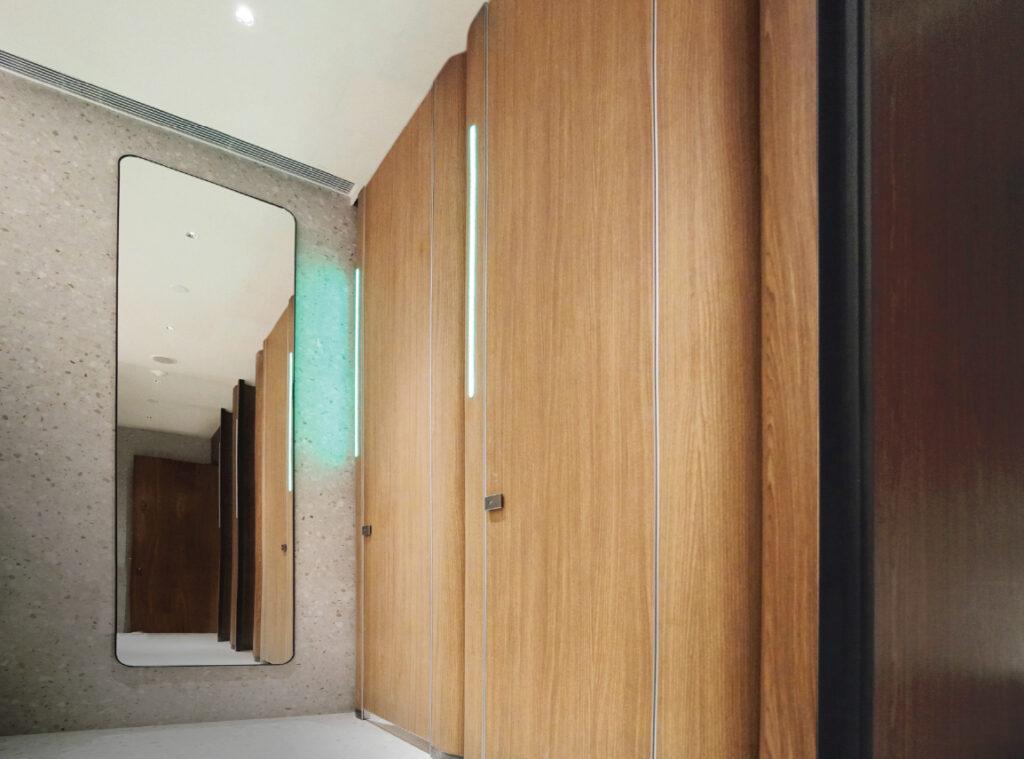

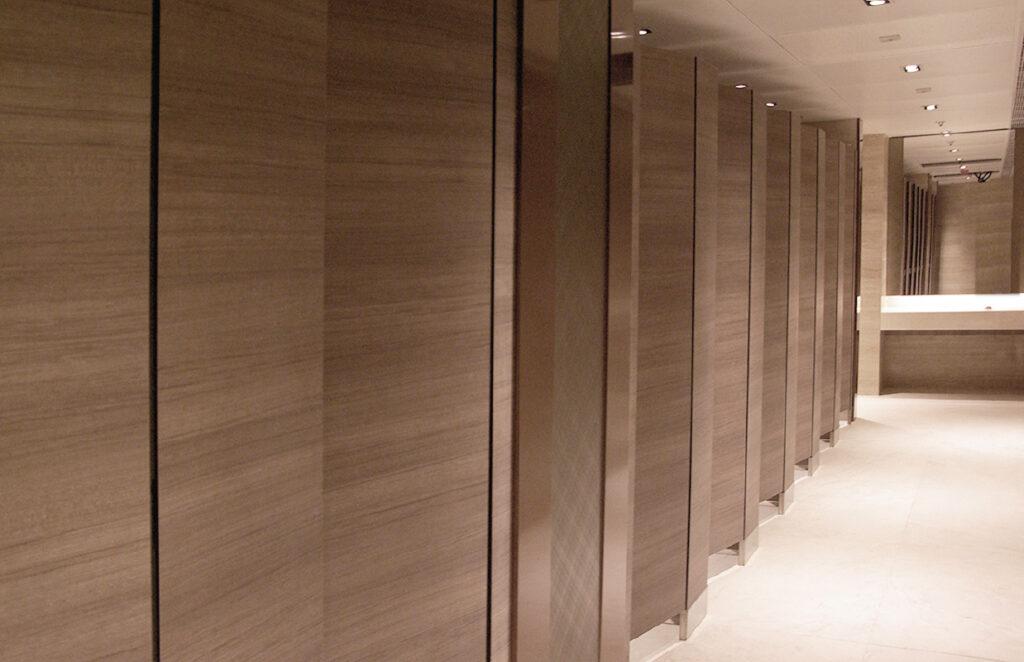

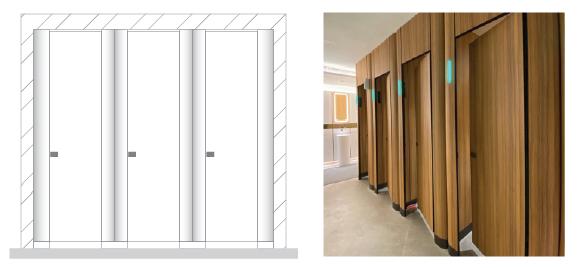

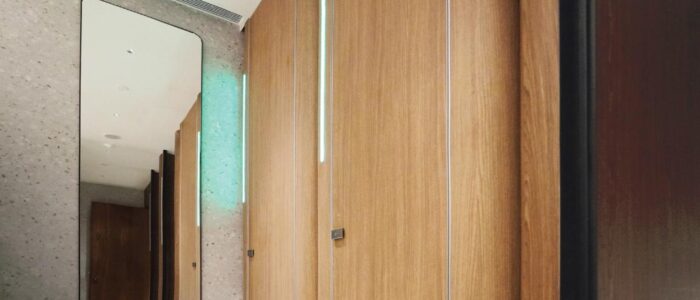

VARIO

Premium Honey Comb Panel System

The system is completed with 36mm thick Door & Division Panel with Aluminum Alloy headrail and Honey Comb Core sandwich construction both side with 3mm thick solid phenolic panel (EN 438). All upper and bottom part of panels are fixed with proprietary cover firmly.The Laminate shall be manufactured under a high pressure process, in a flat press combining melamine resin with phenolic-impregnated layers at pressures exceeding 80kg/cm2 and temperatures approaching 300℉ (150℃). The panels are trimmed to size and the backs are sanded to facilitate bonding.

The laminate manufacturer shall able to provide EN 438 test report of Solid Phenolic Panel, BS476 fire certificate, TUV Anti-bacteria certificate (JIS Z 2801:2000), Chemical Resistance Test Report.

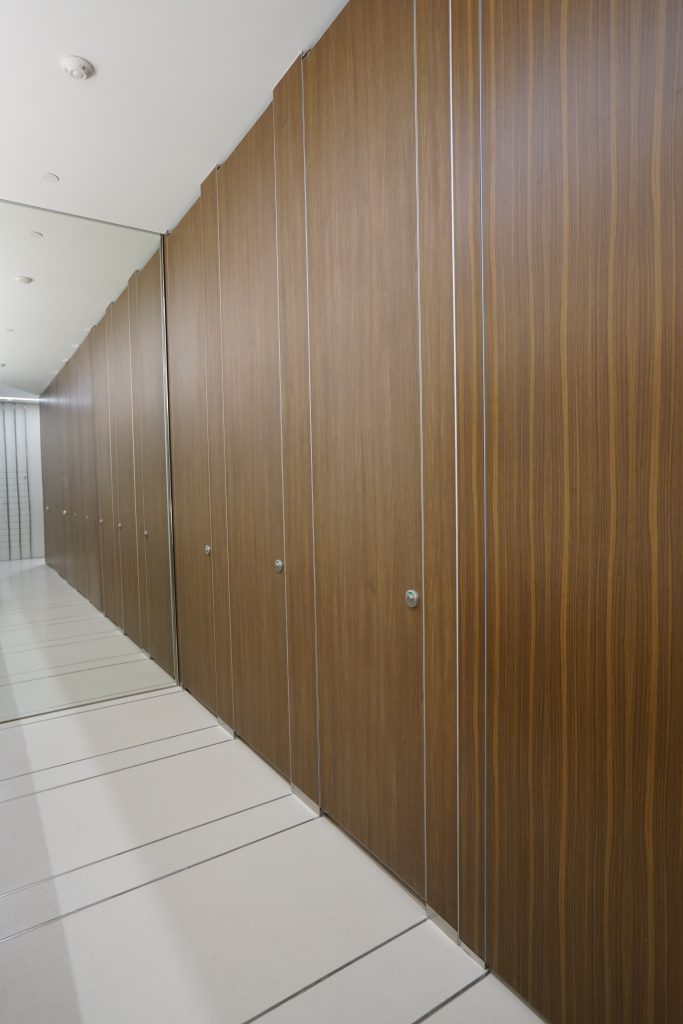

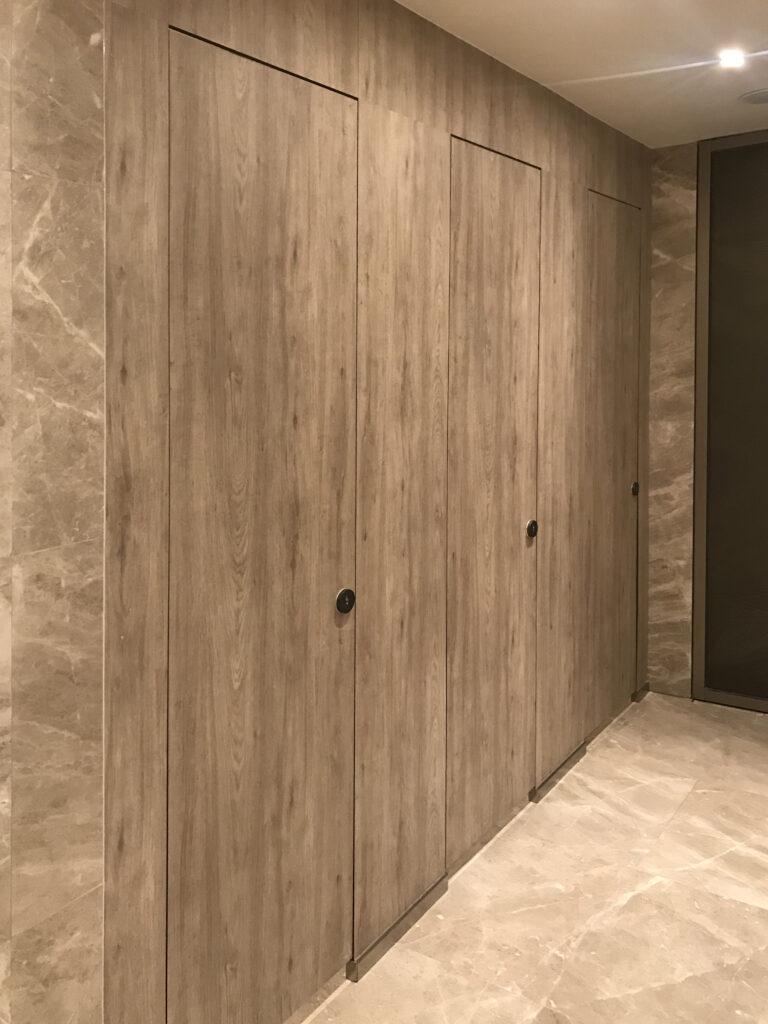

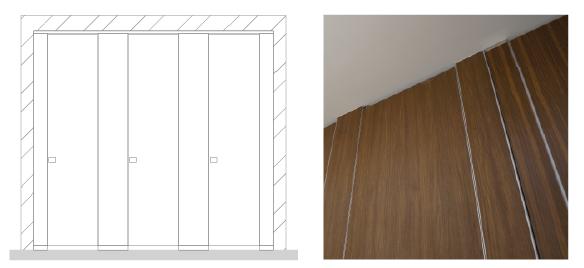

TOPIA-S

Full Height Panel System

The Topia S system comes with a full set of corrosion resistant stainless steel (AISI 304 & 316 grade) ironmongeries. It is complemented with Solid Phenolic Panel that complies with the EN 438 European Standard.
The system is completed with 12mm thick panels for door, pilaster & division panel, with corrosion resistant AISI 304 & 316 grade stainless steel ironmongeries: angle bracket, gravity action hinge, indicator, door knob, doorstop hook, foot cover and aluminum handrail; all in strict accordance to manufacturer’s instruction.

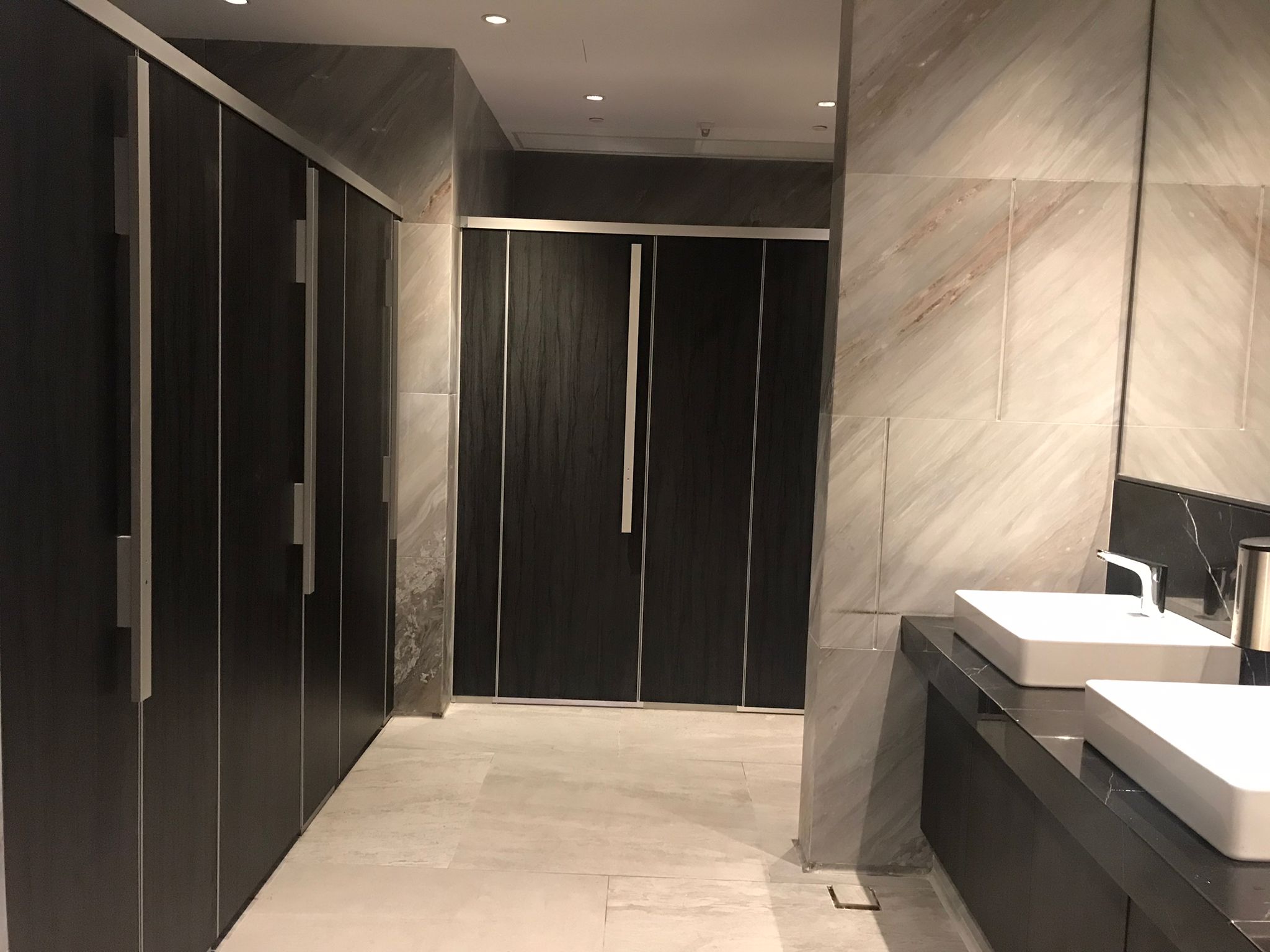

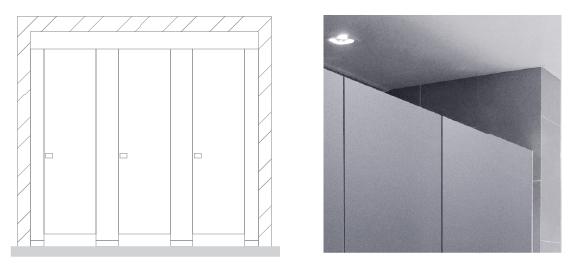

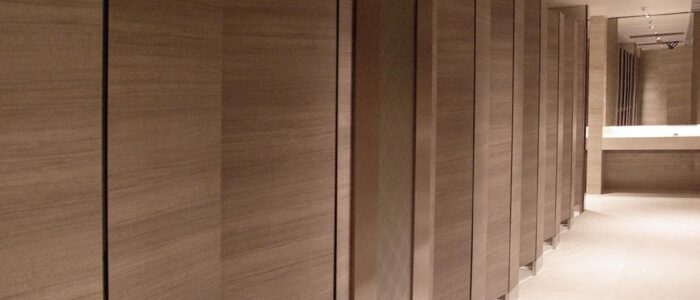

TOPIA-FA

Extra Sense of Space Solution

The system is completed with 18mm thick pilaster and 12mm panels for door, & division panel, with corrosion resistant AISI 304 & 316 grade stainless steel ironmongeries: angle bracket, gravity action hinge, indicator, door knob, doorstop hook, foot cover and adjustable floor-anchored system; all in strict accordance to manufacturer’s instruction.

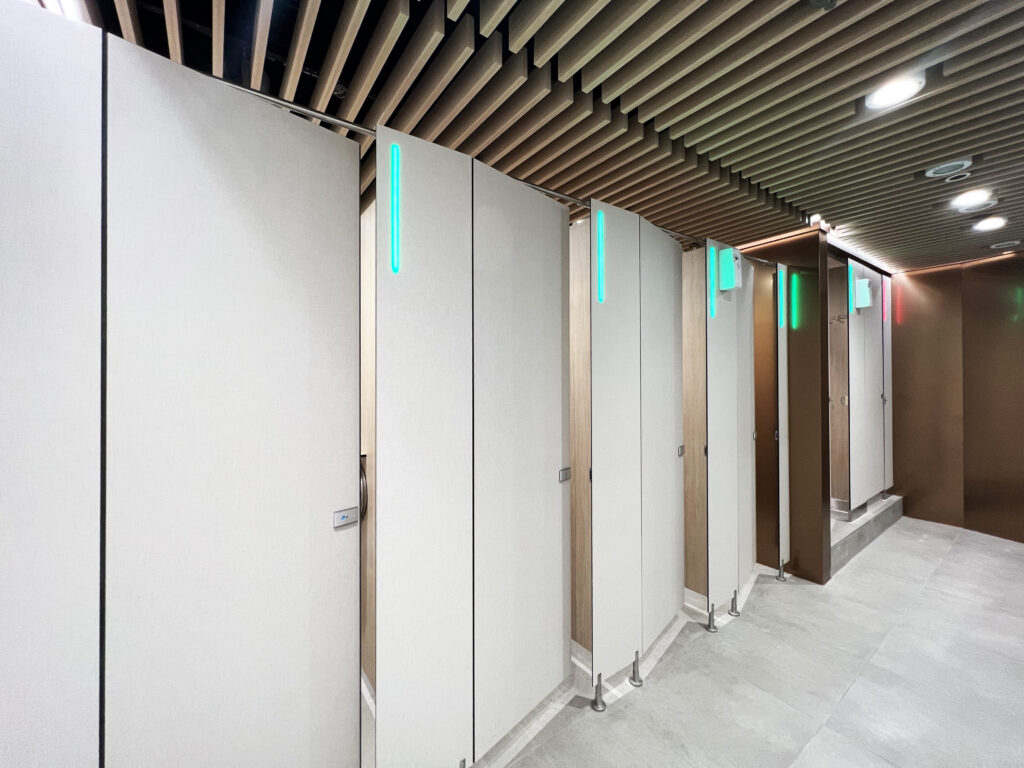

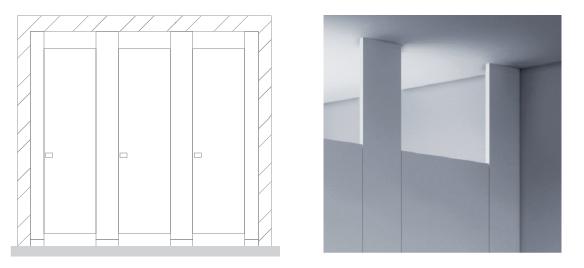

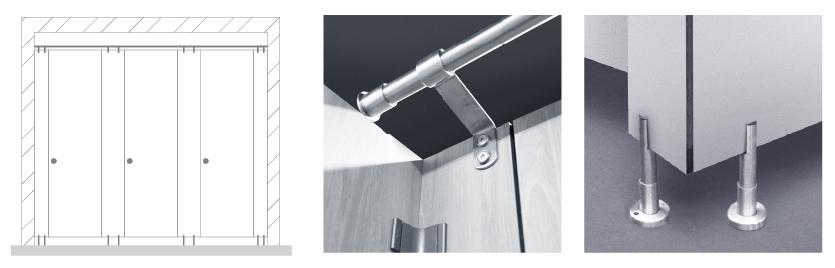

TECHNO-I

Neat Design with Recess Panel Holder

The system is completed with 12mm thick panels for door, pilaster & division panel, with angle bracket, gravity action hinge, indicator, door knob, doorstop hook and adjustable foot with headrail; all in strict accordance to manufacturer’s instruction.

SIMPAC

Economical & Swift Installation Solution

The compact form solution for general toilet application. 12mm thick compact panel, solid phenolic panel door & dividing panel as well as pilaster.

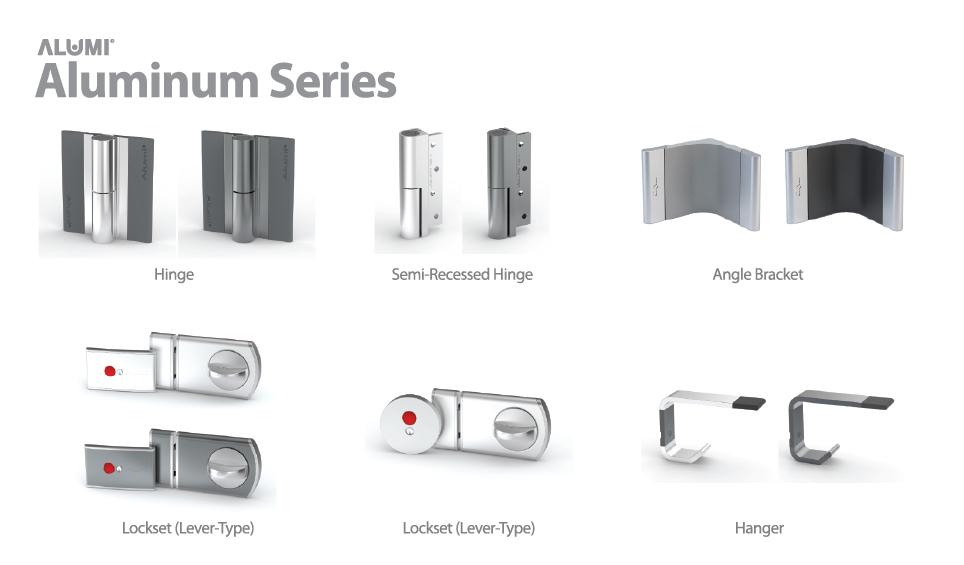

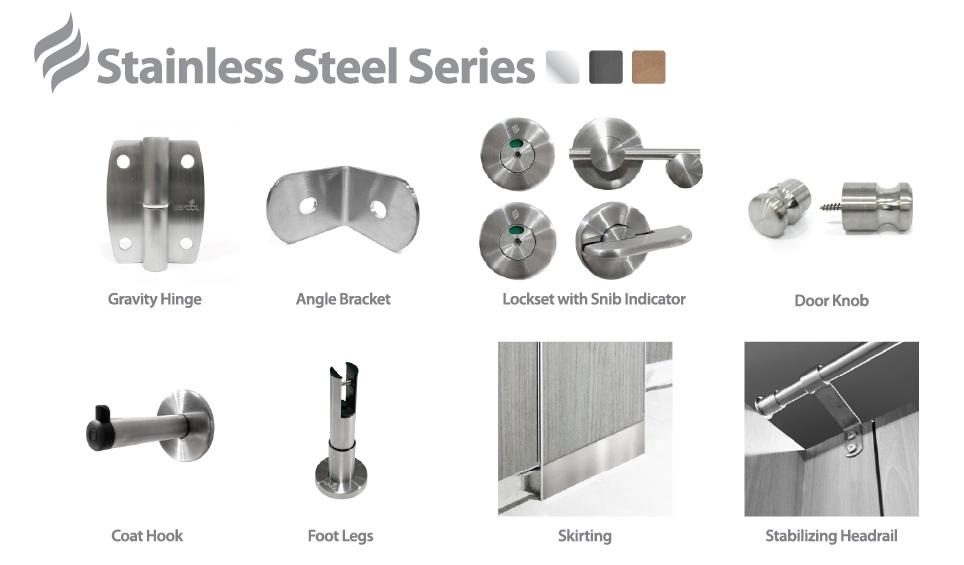

ACCESSORIES
